/Architectural PVDF Tensile Fabric Pavilion Structure in Typhoon Area

Architectural PVDF Tensile Fabric Pavilion Structure in Typhoon Area

This PVDF fabric pavilion structure is made strongly enough, which can against typhoon weather as it's located in Chimelong Port in Zhuhai.

  • Brand:

    Canobbio
  • Item No.:

    CAT-P001
  • Payment:

    LC OR T/T
  • Market price:

    $150
  • Price:

    $120/m2
  • Product origin:

    Guangzhou China
  • Color:

    white or customized
  • Shipping port:

    Hangpu port
  • Lead Time:

    11 days
  • Product Details

PVDF Fabric Pavilion Structure

Area 10,000 sq.mt
Installation Year 2005
Warranty 25 Years
Structure Material Q345
Membrane Material FERRARI 1202T2
coating thickness at top of the yarns 270u Total Thickness 0.78mm

Light transmission

10%

NFP38-511


White index

82%

CIE:International Light Commission

Thernal values ASHRAE standard 74-1988 EN ISO 410
Reflexion Ts70% Ts7%
Reflexion Rs 77% Rs 79%
Absorption As 16% As 14%
Shading coefficient g 13% g 11%
Visible transmission - Tv 5%
Visible reflexion - Rv 87%
UV transmission T-UV 0% Eppley Solar & Sky U-V radiometer
Gobal thermal conductivity Vertical position: U=5,6 W/m² ℃
Horizontal position: U=6,4 W/² ℃
Accoustical weakening index 15 dBA ISO 717
Extreme working temperatures -30/+ 70 in static position
Quality management ISO 9001

Standard: Design, Materials, Production, Installation and Quality Controll all basic on European Standards

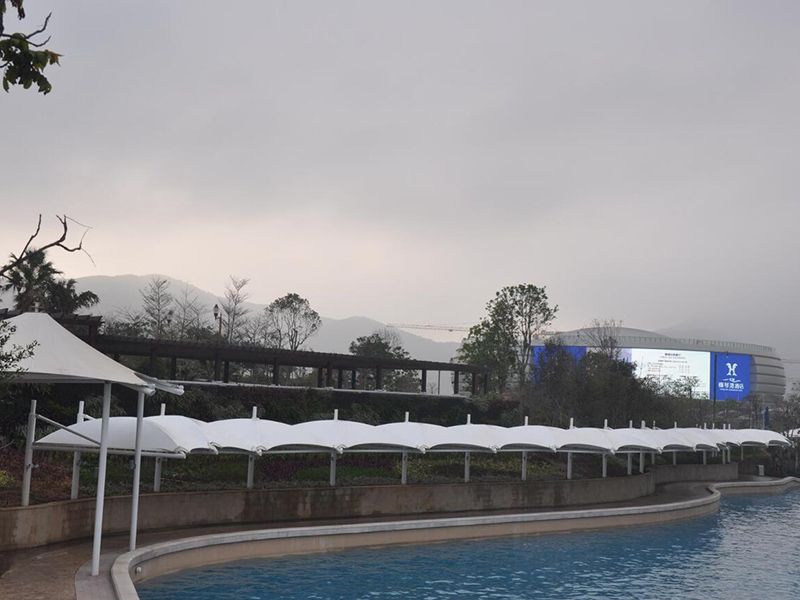

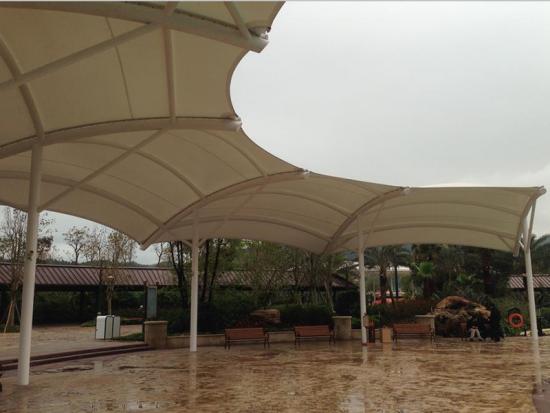

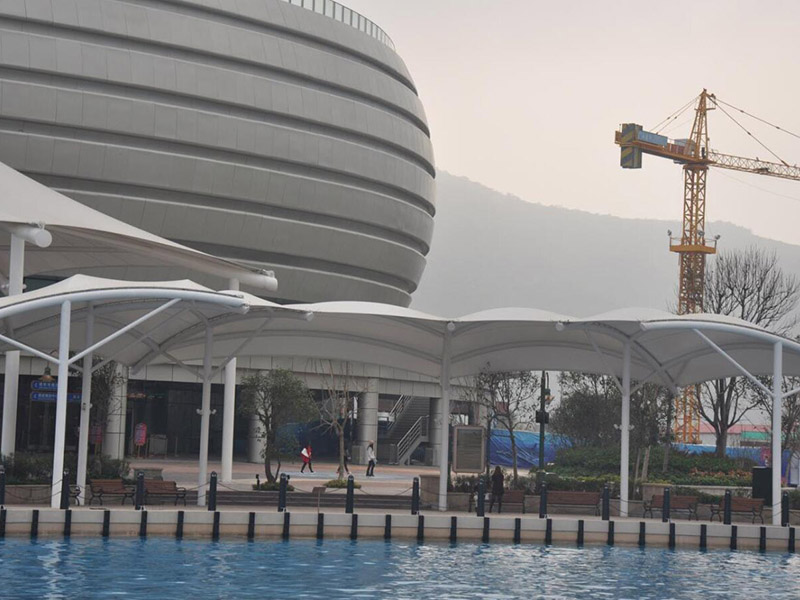

Status:This PVDF Fabric Pavilion structure is located in Chimelong Port,Zhuhai. In August 2017, Level 17 Typhoon has landed in Zhuhai and destroyed many buildings and architectures. But this structure is well designed and can resist the strong hyphoon. After Typhoon, it doesn't face any damage.
