Commercial Space Frame Tensile Structure Roof Design

space frame structure design is one the key projects of the State Sports General Administration and Jiangxi Provincial Government, also is one of the main venues for the Seventh Ctiy Games.

  • Brand:

    Canobbio
  • Item No.:

    CAT-011
  • Payment:

    T/T
  • Product origin:

    China,Guangdong
  • Color:

    White or custimized
  • Shipping port:

    Guangzhou Port
  • Lead Time:

    30-35days
  • Certification:

    SGS/ISO
  • Product Details

Commercial Space Frame Tensile Structure Roof Design



Project Specification


Location

Nanchang city,Jiangxi Province

Project Size

2500Square meters

Fabric Material PTFE
Completion Date 2011
Structure Type Light Steel Structure
Warranty 1Year



Project Design Concept
space frame structure design Project Summary:

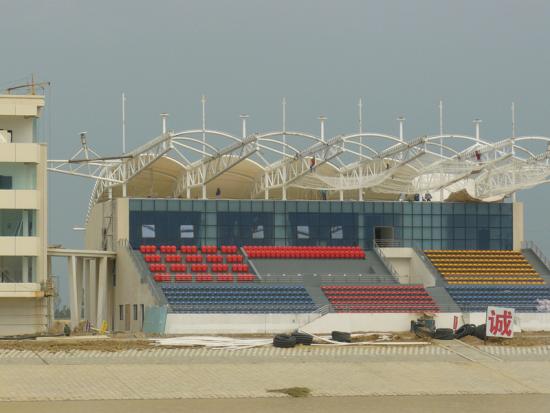

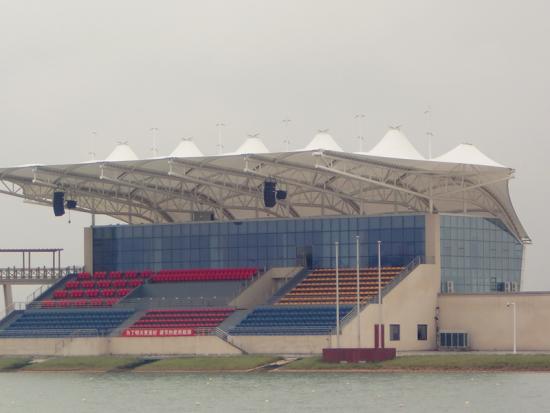

It is one the key projects of the State Sports General Administration and Jiangxi Provincial Government, also is one of the main venues for the Seventh Ctiy Games. The project is a covering pipetruss structure with construction area reaching 4500 rrf. And the cantilever for a single steeltruss structure reaches 35 meters.

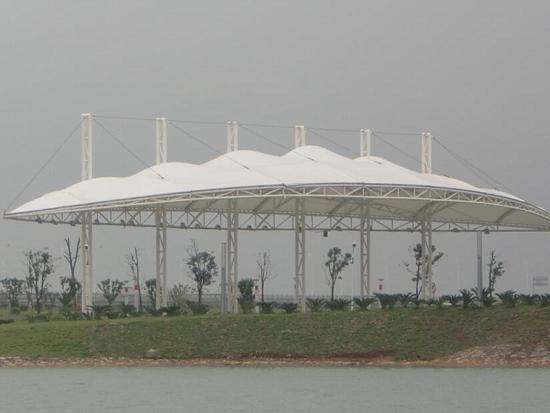

tent stadium celling structure



The Reason Why Choose Tension Structure


1. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs;

2. Short Construction time: Half time is saved compared to the traditional buildings;

3.Various Shape: Changeful supporting structure can make  lots of different shapes of membrane structure with flexible membrane;

4.Security: Membrane Structure can keep the good stability under the action of horizontal load such as earthquake;

5.Self-Cleaning: The rain getinto  water to down on the surface of membrane and clean itself;

6.Fireproof: Fireproof performance of membrane structure can fill the requirements of US ,French,Germany ,Japan and other contries;

7.Large Span:The largest span of Tension membrane structures can exceed to 200m.
