Waterproof Tension Fabric Canopy

Main Business:

1-Space Structure Concept Design

2-Civil and Commercial Architecture

3-Shop Drawings

4-PVDF Luxury membrane structure, steel membrane structure resistant to super typhoon,

5-PTFE permanent membrane architecture;

6-ETFE air pillow roof and facade membrane

7-Building facade membrane

8-Indoor Class A fireproof membrane Ceiling

9-Light steel structure design and construction integration service

10-Concrete and steel construction

  • Brand:

    Canobbio
  • Item No.:

    CAT-039
  • Payment:

    T/T
  • Market price:

    $65
  • Price:

    $60/m2
  • Price range:

    35 - 60/$0
  • Product origin:

    Guangdong China
  • Color:

    White or custimized
  • Shipping port:

    Guangzhou Port
  • Lead Time:

    30-35days
  • Certification:

    SGS/ISO
  • Product Details

Waterproof Tension  Fabric Canopy Shade Structure Building Design

Project Specification

Location

Shantou city,Guangdong province

Shape

pyramid,Dome,Tunnel or customized

Fabric Material

PVDF/PTFE

Completion Date

2010

Frame Material

Steel structure

GMS

1050/1150

Color

White,Gray or customized

Waterproof

Yes

Fireproof

Grade B1/B1/A (PVDF/ETFE/PTFE)

Warranty

Service life can be over 30 years



Project Design Concept

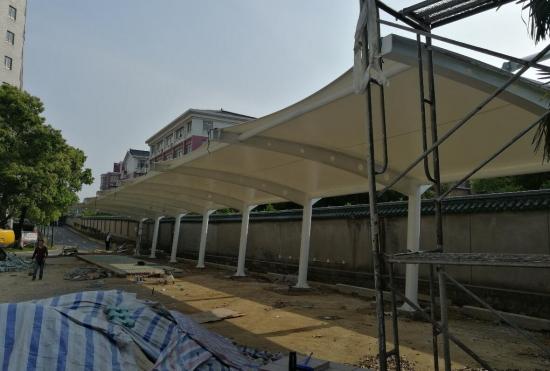

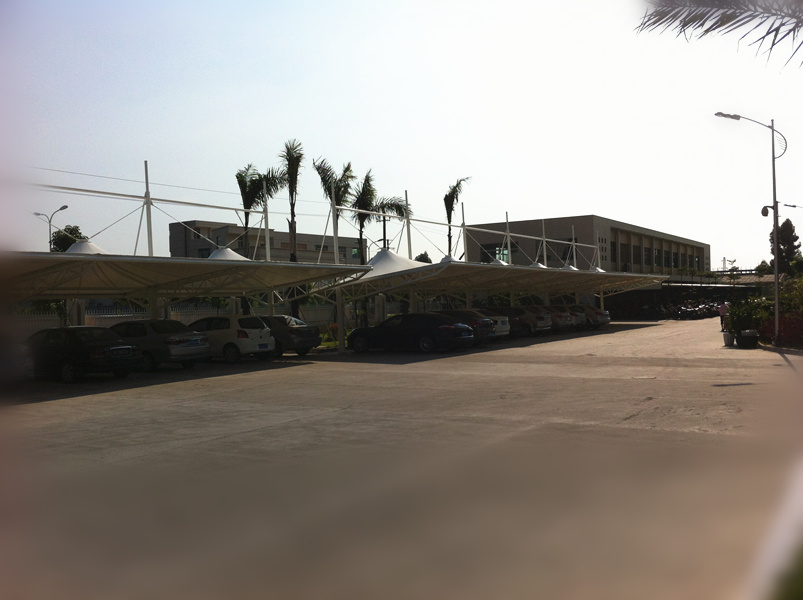

Advantages of Tensile Car Parking Shade:


Car Shades protect cars from harsh sun UV rays.

Helps to maintain the Glow and Shine of the car.

Protect Exterior and Interior Car Parts.

Parking shades keeps the interior temperature cool.

Car Sun Shades Protect car wind screen and dashboard from crack.

Car Shades Protect cars from sand and rain.

Car Park Shade keeps your car safe from falling objects.

Cost-efficient and Self cleaning

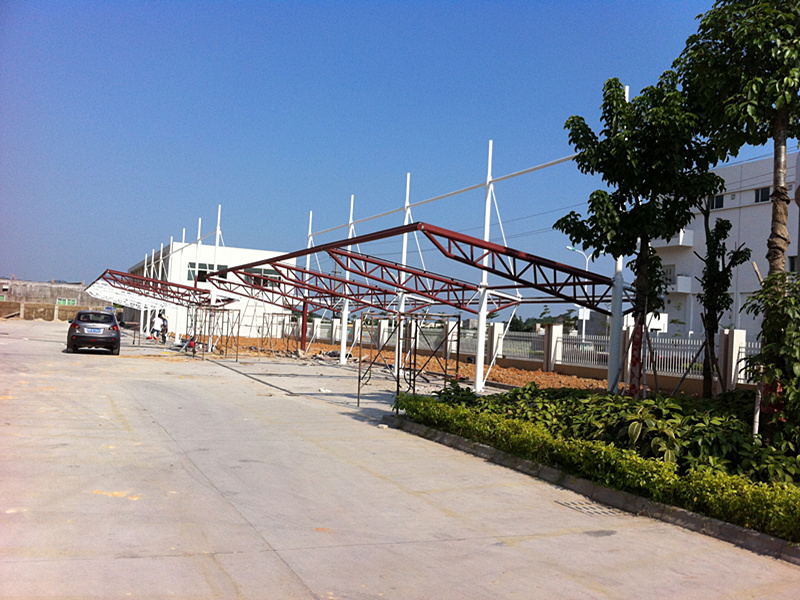

Tensile Structure Construction DetailsStructural Design



1.Concept|Design:Creative design solutions.

2.Design-assistance:Provide further design support to architects

3.Engineering:Engineering services provide a special structural examination.

4.Construction|Manufacturing:We are able to deliver on projects because of our skilled fabrication services.

5.Construction Installation:Professional manner and engineer to guide the installation

6.Post-construction services:Include structural reviews, special inspections, routine maintenance, structure modifications, repairs and industrial cleaning of membrane panels.
