Outside Walkway Tensile Roof

It’s a commercial walkway tensile canopy we built in 2016 for Nestle in Yunnan Province.

  • Brand:

    Canobbio
  • Item No.:

    CAT-044
  • Payment:

    LC OR T/T
  • Product origin:

    Canton China
  • Color:

    White or custimized
  • Shipping port:

    Canton China or Milan Italy
  • Lead Time:

    30-35days
  • Certification:

    SGS/ISO
  • Product Details

Long Span Outside Walkway Tensile Roof Design

Project Specification

Location

Kunming City,Yunnan Province

Project Size 1300 Square meters
Fabric Material PVDF
Completion Date 2016
Structure Type Light
Warranty 1Year



Project Design Concept


walkway roof design Project Summary:

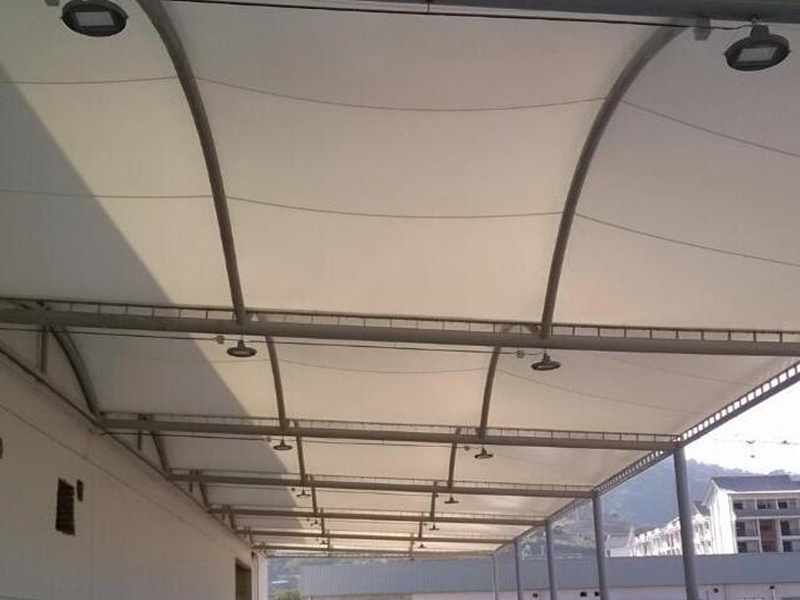

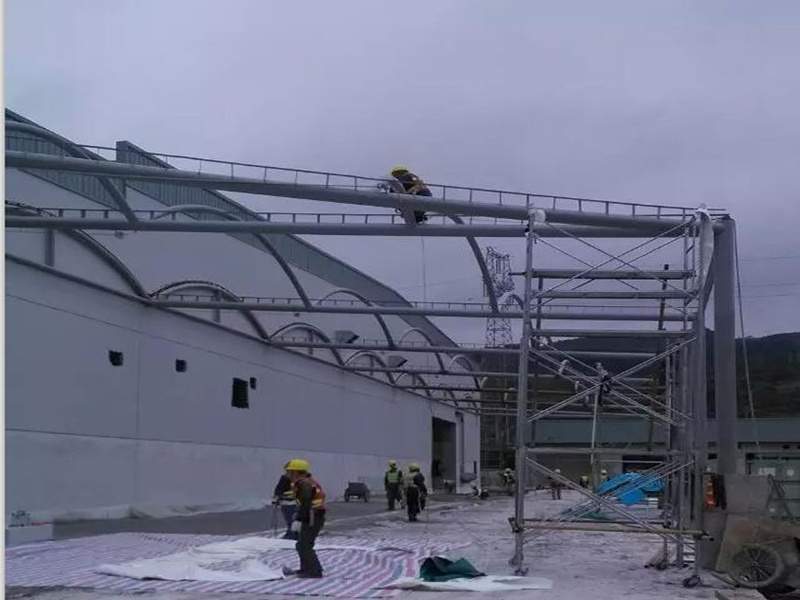

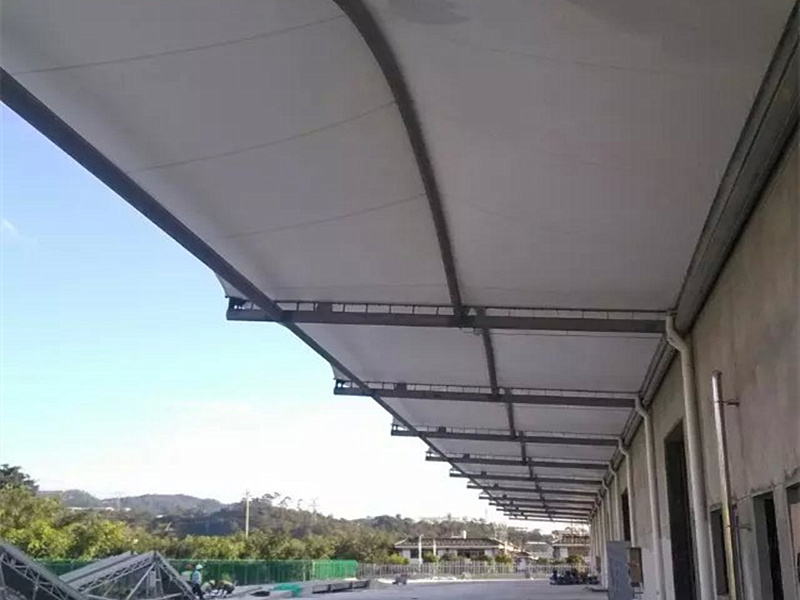

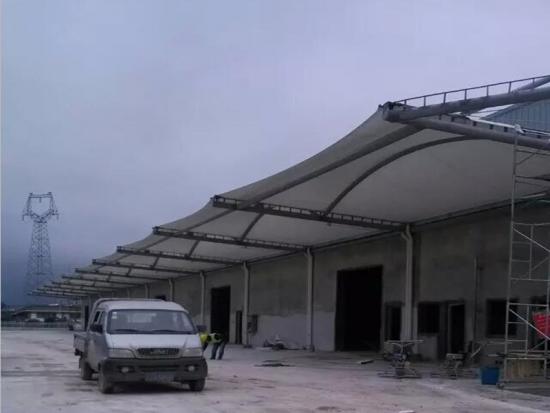

A nice cooperation with Nestle company. You can say it’s a commercial tensile walkway, also it’s an awing canopy outside the warehouse.The tensile canopy can used for car parking and protect the warehouse from rain and sun burn.


walkway roof designwalkway roof design




1.Concept|Design:Creative design solutions.

2.Design-assistance:Provide further design support to architects

3.Engineering:Engineering services provide a special structural examination.

4.Construction|Manufacturing:We are able to deliver on projects because of our skilled fabrication services.

5.Construction Installation:Professional manner and engineer to guide the installation

6.Post-construction services:Include structural reviews, special inspections, routine maintenance, structure modifications, repairs and industrial cleaning of membrane panels.

Contact now,let us find a solution for you!
