Tensile Fabric Roof Design Solution For Workshop

This is a unloading platform we designed for our customer. Also the second cooperation with Nestle.

  • Brand:

    Canobbio
  • Item No.:

    CAT-067
  • Payment:

    T/T
  • Product origin:

    China,Guangdong
  • Color:

    White or custimized
  • Shipping port:

    Guangzhou Port
  • Lead Time:

    30-35days
  • Certification:

    SGS/ISO
  • Product Details

Tensile Fabric Roof Design Solution For Workshop

Project Specification


Location Harbin city,Liaoning province
Shape
Pyramid,Dome,Tunnel or customized
Area 1500 Square meters
Fabric Material
PVDF
Completion Date 2018
Frame Material Light Steel structure
GMS 1050/1150
Color White,Gray or customized
Waterproof Yes
Fireproof Grade B1/B1/A (PVDF/ETFE/PTFE)
Warranty
Service life can be over 30 years



Project Design Concept

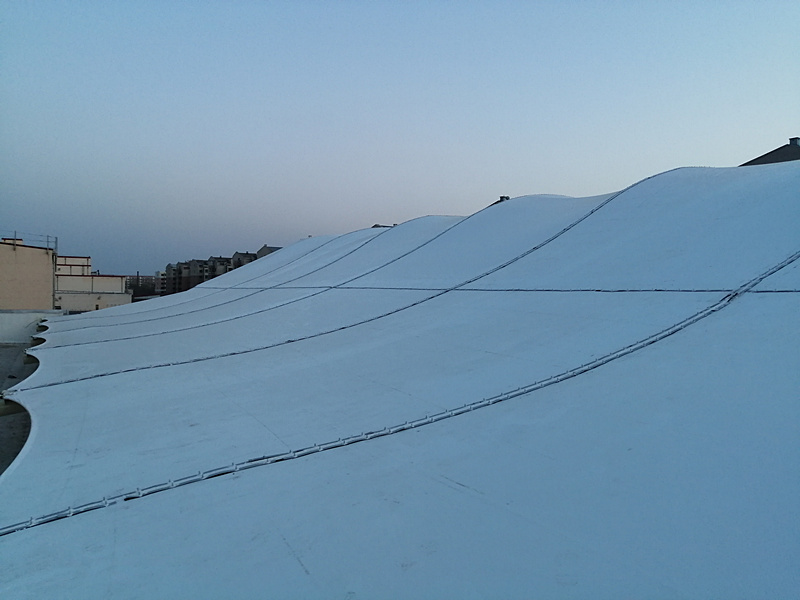

This is a unloading platform we designed for our customer. Also the second cooperation with Nestle. Canobbio is professional in offering Tensile Fabric Design Solution. The Total area of this tensile membrane roof  is 1500 square meters with pvdf fabric material.







1.Concept|Design:Creative design solutions.

2.Design-assistance:Provide further design support to architects

3.Engineering:Engineering services provide a special structural examination.

4.Construction|Manufacturing:We are able to deliver on projects because of our skilled fabrication services.

5.Construction Installation:Professional manner and engineer to guide the installation

6.Post-construction services:Include structural reviews, special inspections, routine maintenance, structure modifications, repairs and industrial cleaning of membrane panels.
