Umbrella Structure PTFE Membrane Tensile Canopy for Foshan International Furniture Expo Mall

Umbrella Structure PTFE Membrane Tensile Canopy for Foshan International Furniture Expo Mall Project was completed in 2012 by canobbio Asiatex., the total construction area is about 2 million sq.mt.




  • Brand:

    Canobbio
  • Item No.:

    CAT-RS004
  • Payment:

    LC OR T/T
  • Market price:

    $512
  • Price:

    $468/m2
  • Product origin:

    Guangzhou China
  • Color:

    White or customized
  • Shipping port:

    Hangpu Port, Guangzhou
  • Lead Time:

    30-35days
  • Certification:

    SGS/ISO
  • Product Details


Project Specification


Location

Foshan International Furniture Expo Mall

Fabric Material PTFE (SF-I from Saint Gobain USA)
Structure Type Cable Net Dome
Warranty 10 Years (Design Life span 50 years)



Project Design Concept

Project Summary:


Umbrella Structure PTFE Membrane Tensile Canopy for Foshan International Furniture Expo Mall Project was completed in 2012 by canobbio Asiatex., the total construction area is about 2 million sq.mt.

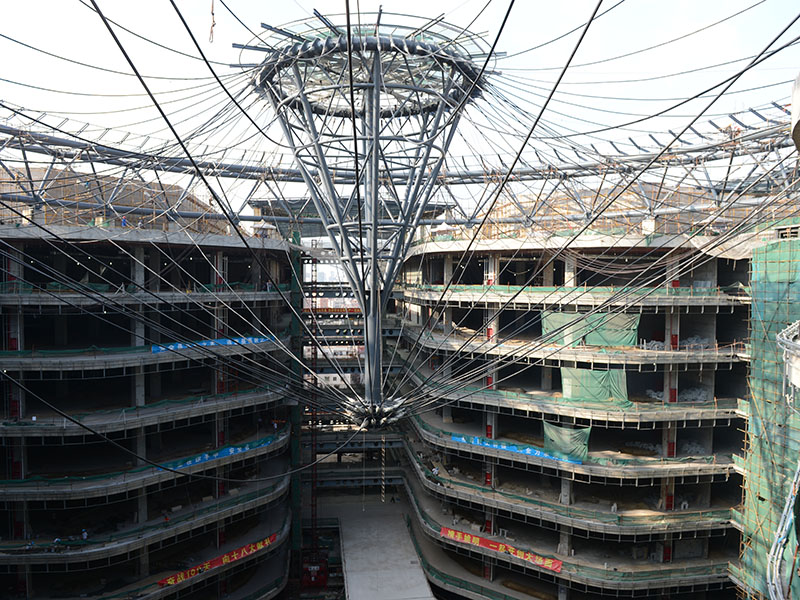

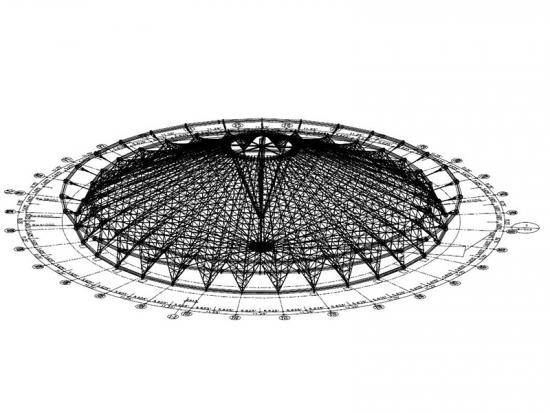

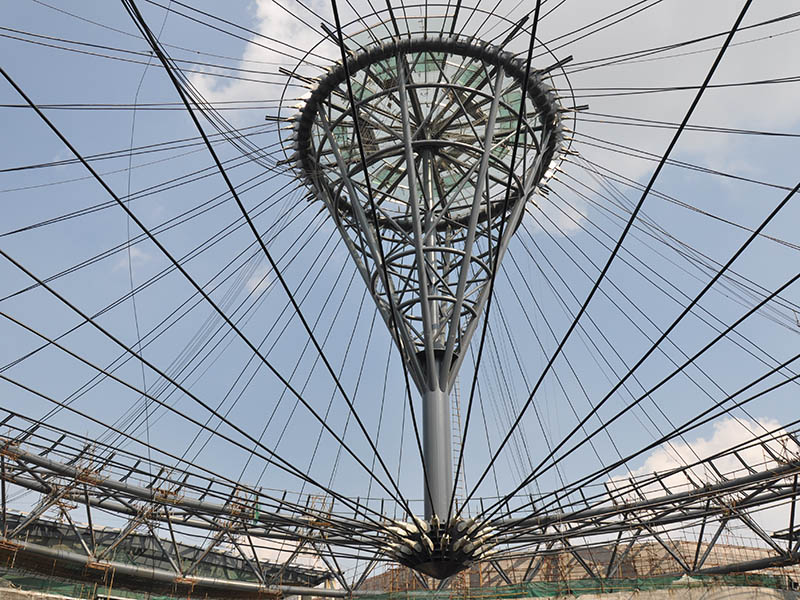

The whole project combines three parts: circle steel truss frame, cable net and PTFE membrane from Sain Gobain SF-I.

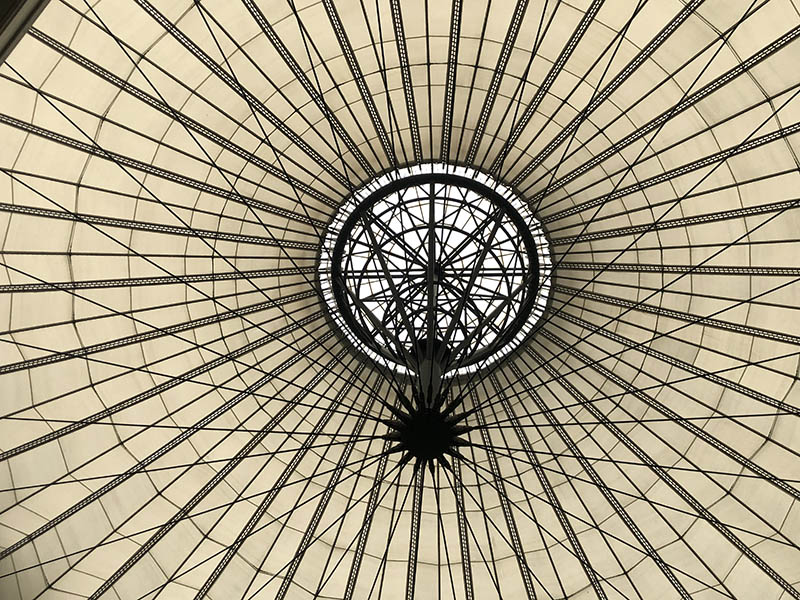

The center is the key Pilot Projects of Three Old Reform in Guangdong Province and the major projects of the Ministry of Land and Resources. Currently this umbrella structure PTFE Membrane Tensile Canopy is the biggest membrane structure for Furniture center in China, the diameter of round umbrella is 96 meters.


1.Concept|Design:Creative design solutions.

2.Design-assistance:Provide further design support to architects

3.Engineering:Engineering services provide a special structural examination.

4.Construction|Manufacturing:We are able to deliver on projects because of our skilled fabrication services.

5.Construction Installation:Professional manner and engineer to guide the installation

6.Post-construction services:Include structural reviews, special inspections, routine maintenance, structure modifications, repairs and industrial cleaning of membrane panels.

The Reason Why Choose Tension Structure

1. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs;

2. Short Construction time: Half time is saved compared to the traditional buildings;

3.Various Shape: Changeful supporting structure can make  lots of different shapes of membrane structure with flexible membrane;

4.Security: Membrane Structure can keep the good stability under the action of horizontal load such as earthquake;

5.Self-Cleaning: The rain getinto  water to down on the surface of membrane and clean itself;

6.Fireproof: Fireproof performance of membrane structure can fill the requirements of US ,French,Germany ,Japan and other contries;

7.Large Span:The largest span of Tension membrane structures can exceed to 200m.


If any requirement about PTFE Membrane Tensile Canopy, please mail to canobbio@canobbio.com.cn or whatsapp/wechat: +86-13450381331 or +86-13600065322.
