Waterproof Retractable Tensile Structure Open And Closed Roof

The Retractable Roof System can be opened and closed by electric, also it can be remoted control within 100 meters.

  • Brand:

    Canobbio
  • Item No.:

    CAT-068
  • Payment:

    T/T
  • Market price:

    $180
  • Price:

    $150/m2
  • Price range:

    100 - 150/$0
  • Product origin:

    China,Guangdong
  • Color:

    White or custimized
  • Shipping port:

    Guangzhou Port
  • Lead Time:

    30-35days
  • Certification:

    SGS/ISO
  • Product Details

Waterproof Retractable Tensile Structure Open And Closed Roof

Project Specification

Location

Retractable Tensile Roof in Foshan

Fabric Material PVDF
Completion Date 2012
Structure Type Light
Warranty 1Year(Service life over 30 years)


Project Design Concept

Project Summary:

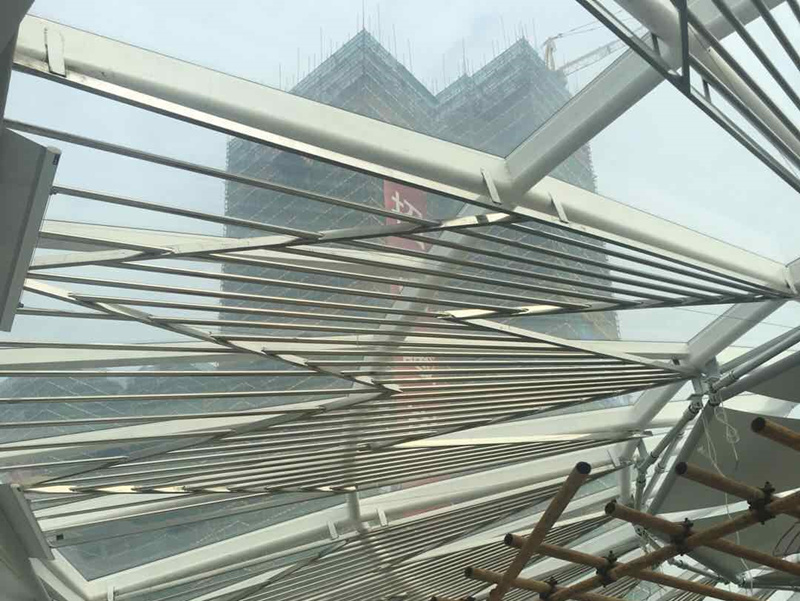

The venue is a retractable membrane system with a retractable inner roof over a glass roof.This allowed people to use this beautiful Retractable Tensile Roof more often and in particular more independent of the weather.

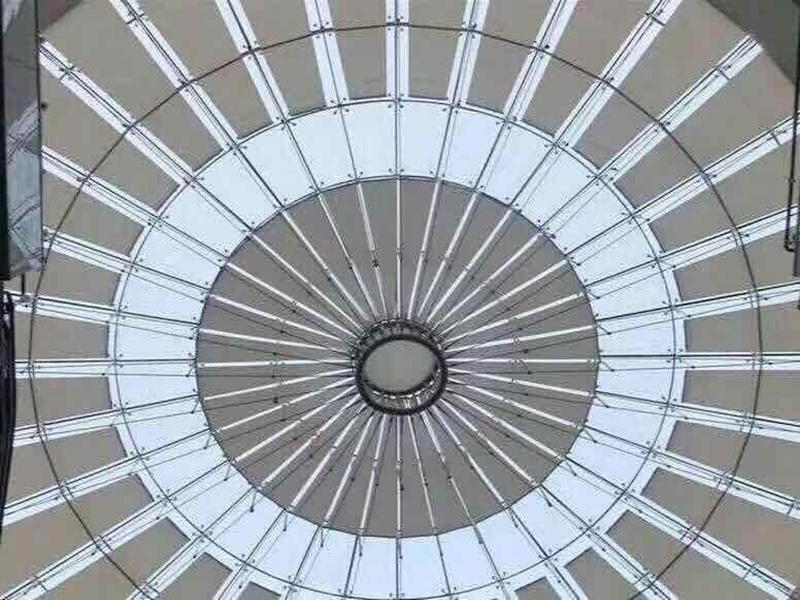

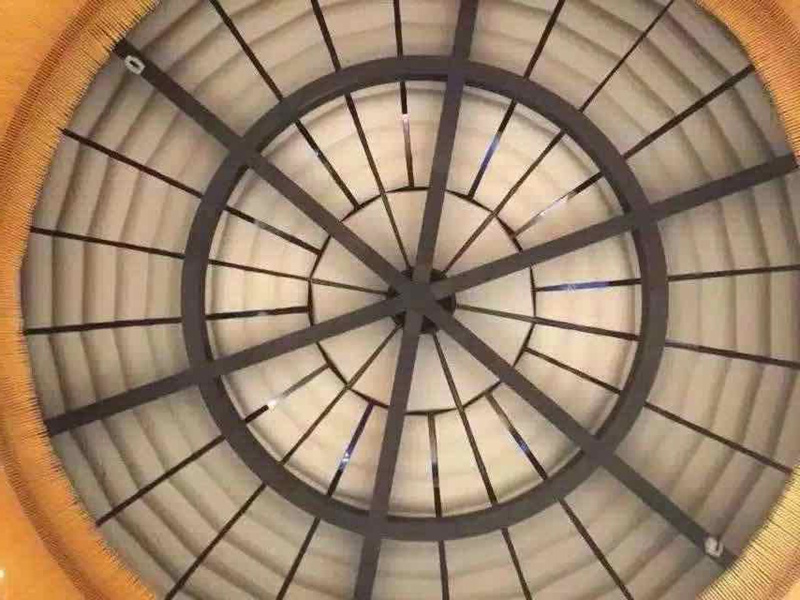

The Retractable Roof System can be opened like an umbrella.A radial cable stayed system is the primary structural system for this retractable membrane roof that can be closed at the push of a button. In the opened position the membrane is folded and open totally. The membrane material is a PVDF fabric. The determining factors for the choice of this very high grade material were the requirements for durability and quality with very high light translucency.







1. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs;

2. Short Construction time: Half time is saved compared to the traditional buildings;

3.Various Shape: Changeful supporting structure can make  lots of different shapes of membrane structure with flexible membrane;

4.Security: Membrane Structure can keep the good stability under the action of horizontal load such as earthquake;

5.Self-Cleaning: The rain getinto  water to down on the surface of membrane and clean itself;

6.Fireproof: Fireproof performance of membrane structure can fill the requirements of US ,French,Germany ,Japan and other contries;

7.Large Span:The largest span of Tension membrane structures can exceed to 200m.

Contact now,let us find a solution for you!
