Level A Fireproofing PTFE Airport shade ceiling is designed as a shape of "Sickle" for ZhengZhou Airport in 2015.
Brand:
CanobbioItem No.:
CAT-RS014Payment:
LC OR T/TMarket price:
$120Price:
$100/m2Product origin:
ChinaColor:
CustomizedShipping port:
Huangpu PortLead Time:
16 days

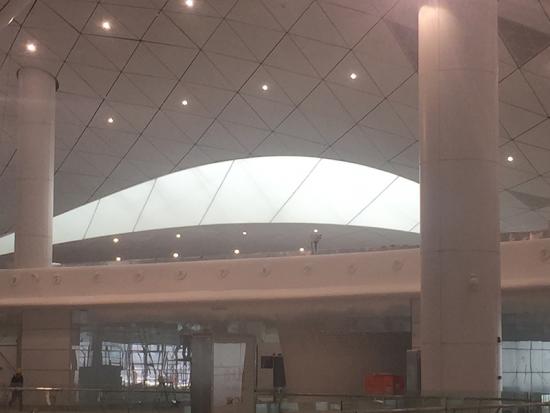

Level A Fireproofing PTFE Airport shade ceiling is designed as a shape of "Sickle" for ZhengZhou Airport in 2015.
|
PTFE Airport Shade Ceiling |
|||
| Location | ZhengZhou, China | Structure Type | Light |
| Fabric Material | Germany MEHLER PTFE | Fire Protection | Level A |
| Completion Date | 2015 | Warranty | 15 Years |

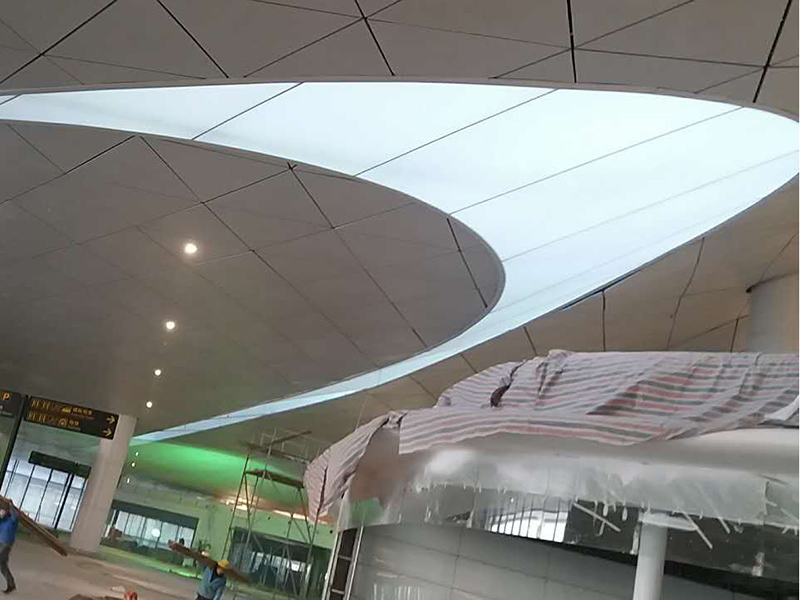

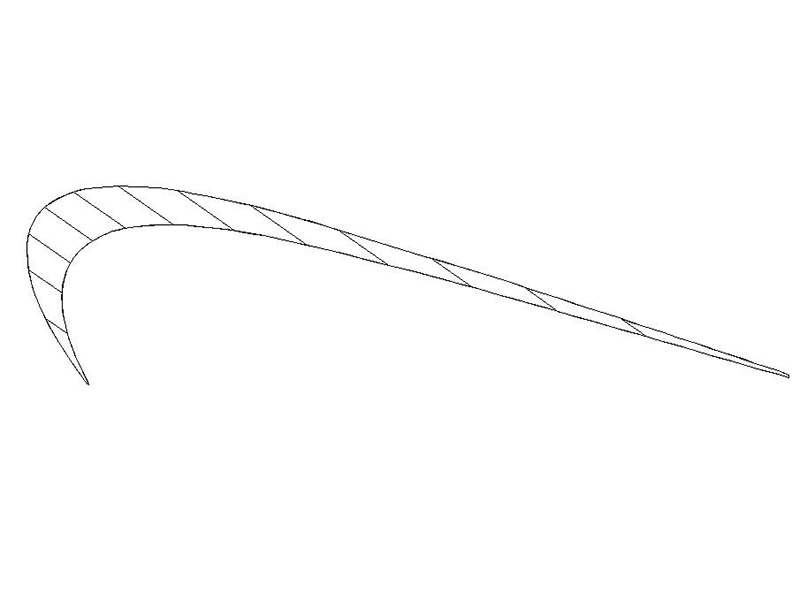

This is the most difficult project we have done in 2015. We use Germany MEHLER PTFE fibreglass soft membrane, which is unwelded membrane materials. Because of the metatypical shape and total loss of leftover material, only the smallest soft membrane of " Sickle" Shape , the using material is over 600 sq.mt, while the area size is only 230 sq.mt. The wastage is about 3 times of the area size.
1.Concep Design: Creative design solutions for client.
2.Design-assistance: Provide further design support to architects
3.Engineering: Engineering services provide a special structural analysis.
4.Construction Manufacturing: produced and fabrication services.
5.Construction Installation: Professional manner and engineer to guide the installation
6.Post-construction services: Include structural reviews, special inspections, routine maintenance, structure modifications, repairs and industrial cleaning of membrane panels.
our design team can be provided below service:
1-Sport center panning design;
2-3D model made;
3-analysis of structure;
4-perspective drawings made;
5-Engineering made;
6-Shop drawings made;
7-budget of sport center made.
8-manufacture and installation
Main Business:
1-Space Structure Concept Design
2-Civil and Commercial Architecture
3-Shop Drawings
4-PVDF Luxury membrane structure, steel membrane structure resistant to super typhoon,
5-PTFE permanent membrane architecture;
6-ETFE air pillow roof and facade membrane
7-Air hold building temporary, such as mobile hospital, circus, emergency tent for disaster victims
8-Building facade membrane
9-Indoor Class A fireproof membrane Ceiling
10-Light steel structure design and construction integration service
11-Concrete and steel construction
If any requirement about PTFE Airport Shade Ceiling, please mail to canobbio@canobbio.com.cn or whatsapp/wechat: +86-13450381331 or +86-13600065322.
