Architecture Inverse umbrella tensioned Membrane Roof For Tollgate
This inverse umbrella tensioned membrane roof was designed, produced and installed by Canobbio in 2010.

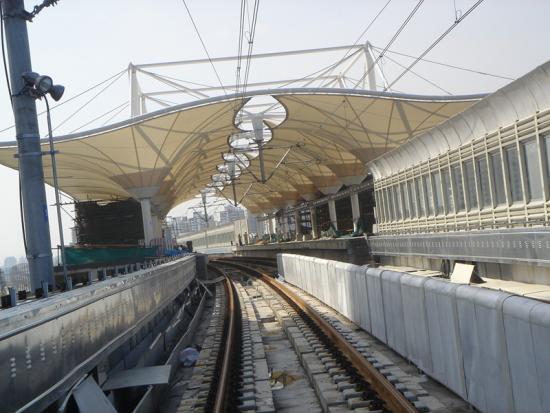

This Tensile Structure was Designed for Line6 Station Awing of Shanghai Railway Transportation.The membrane awning has good solar transmission of light, so energy could be saved a lot. And it looks like some beautiful lotus flowers when the lights are on at night.
Brand:
CanobbioItem No.:
CAT-017Payment:
T/TProduct origin:
China,GuangdongColor:
White or custimizedShipping port:
Guangzhou PortLead Time:
30-35daysCertification:
SGS/ISOProfessional Architect Firm For Tensile Membrane Structure Design
|
Location |
Shanghai City |
| Project Size |
8000Square meters |
| Fabric Material | PTFE |
| Completion Date | 2006 |
| Structure Type |
Light |
| Warranty |
1Year |
Project Summary: Haigao Hangjin and Gangcheng stations are located in Pudong.The membrane awning has good solar transmission of light, so energy could be saved a lot. And it looks like some beautiful lotus flowers when the lights are on at night. It becomes a famous sight in Pudong.
1. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs;
2. Short Construction time: Half time is saved compared to the traditional buildings;
3.Various Shape: Changeful supporting structure can make lots of different shapes of membrane structure with flexible membrane;
4.Security: Membrane Structure can keep the good stability under the action of horizontal load such as earthquake;
5.Self-Cleaning: The rain getinto water to down on the surface of membrane and clean itself;
6.Fireproof: Fireproof performance of membrane structure can fill the requirements of US ,French,Germany ,Japan and other contries;
7.Large Span:The largest span of Tension membrane structures can exceed to 200m.

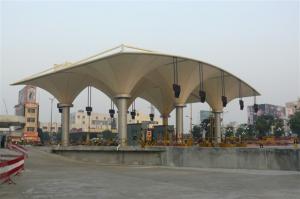

This inverse umbrella tensioned membrane roof was designed, produced and installed by Canobbio in 2010.
One of the biggest constructure made of PTFE membrane in China at that time.
Toll-gate are used in high speed way and Airport.The tension structure was built with extremely strong members and fabric.
DongShan Railway Structure PTFE Fabric Structures was finished in 2007.
This is the Airport Soft membrane ceiling of Main Building&Passenger corridors in Chongqing Jiangbei International Airport.
Waterproof PVDF fabric Membrane shade is a project Canobbio team made for Dazhou Gallery Bridge in 2008, the whole project including design, production and installation.
Level A Fireproofing PTFE Airport shade ceiling is designed as a shape of "Sickle" for ZhengZhou Airport in 2015.
This Saint Gabin PTFE indoor Membrane Structure Soft Ceiling was made for Baiyun International Airport by Canobbio Asiatex Team in 2006.
Xiaoshan Airport Atrium and Sunk Roof PTFE tensile Ceiling was finished by Canobbio Team in July, 2022.
