Architecture Inverse umbrella tensioned Membrane Roof For Tollgate

This inverse umbrella tensioned membrane roof was designed, produced and installed by Canobbio in 2010.

  • Brand:

    Canobbio
  • Item No.:

    CAT-RS017
  • Payment:

    T/T
  • Product origin:

    China,Guangdong
  • Color:

    White or custimized
  • Shipping port:

    Guangzhou Port
  • Lead Time:

    30-35days
  • Certification:

    SGS/ISO
  • Product Details

Architecture Inverse umbrella tensioned Membrane Roof For Tollgate

Project Specification


Location
Guangzhou,Guangdong Province
Project Size 1800 Square meters
Fabric Material PTFE
Completion Date 2010
Structure Type Light
Warranty 1Year



Project Design Concept

Project summary:

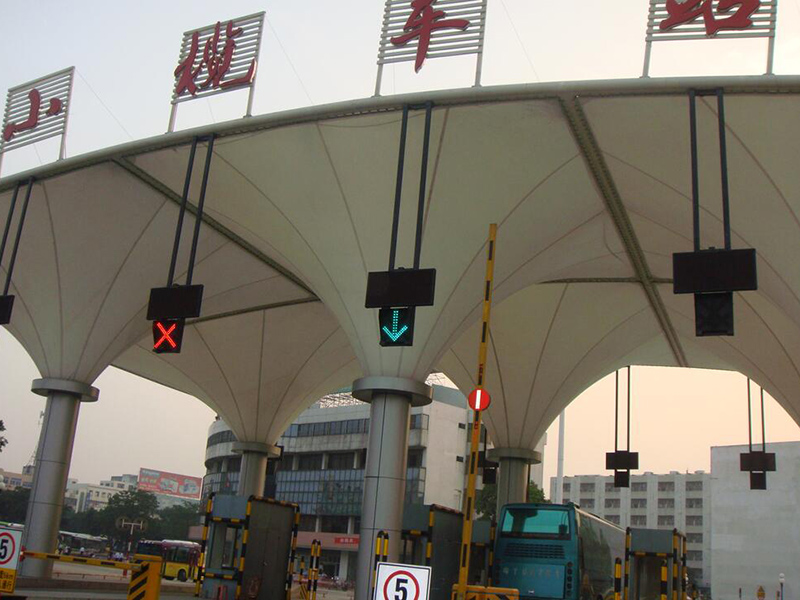

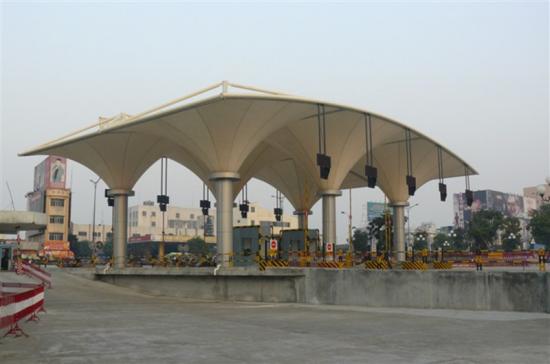

This inverse umbrella tensioned membrane roof was designed, produced and installed by Canobbio in 2010.

The construction area reaches 1800Sq.meters and PTFE Membrane was selected. It is an inverse umbrella tension structure with each span between umbrellas reaching 35 meters.




The Reason Why Choose Tension Structure


1. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs;

2. Short Construction time: Half time is saved compared to the traditional buildings;

3.Various Shape: Changeful supporting structure can make  lots of different shapes of membrane structure with flexible membrane;

4.Security: Membrane Structure can keep the good stability under the action of horizontal load such as earthquake;

5.Self-Cleaning: The rain getinto  water to down on the surface of membrane and clean itself;

6.Fireproof: Fireproof performance of membrane structure can fill the requirements of US ,French,Germany ,Japan and other contries;

7.Large Span:The largest span of Tension membrane structures can exceed to 200m.


space frame canopy design


If any inquiry about inverse umbrella tensioned membrane roof, please mail to canobbio@canobbio.com.cn or whatsapp/wechat: +86-13450381331 or +86-13600065322.
