Lighting Dome in Hakka Museum Jakarta, Indonesia

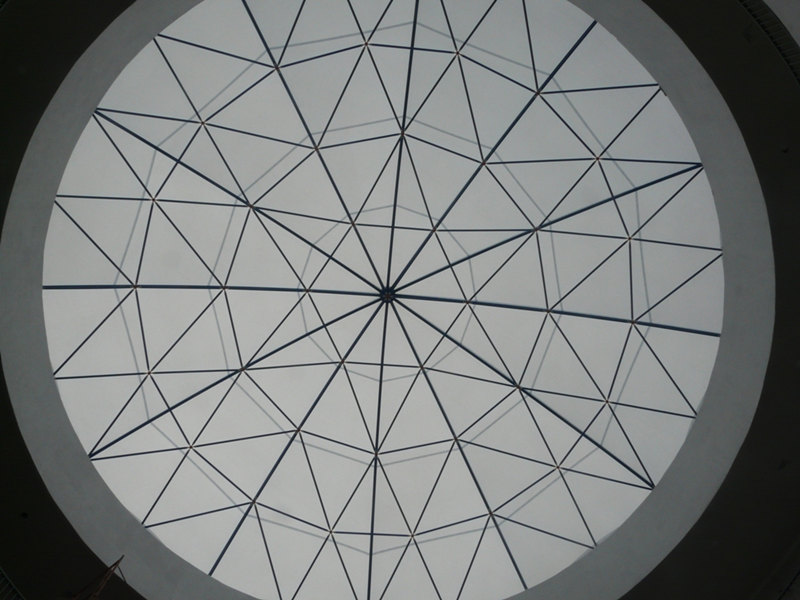

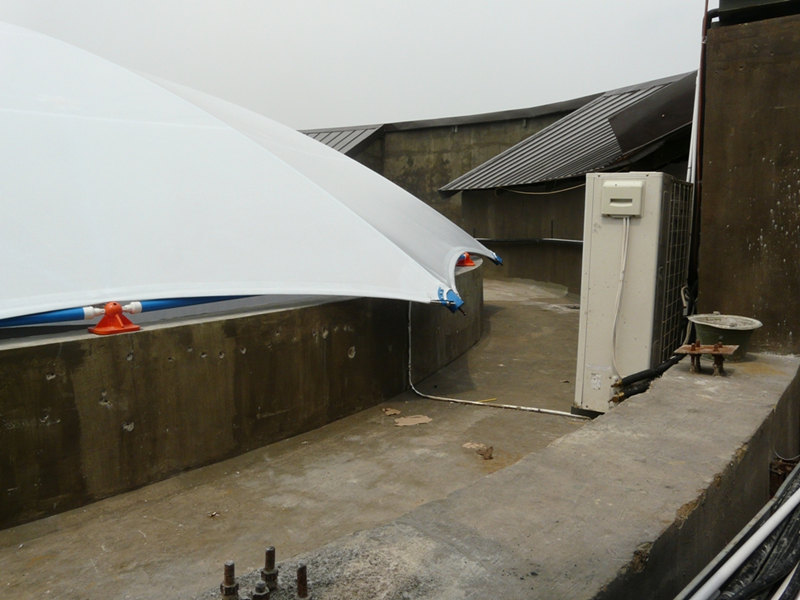

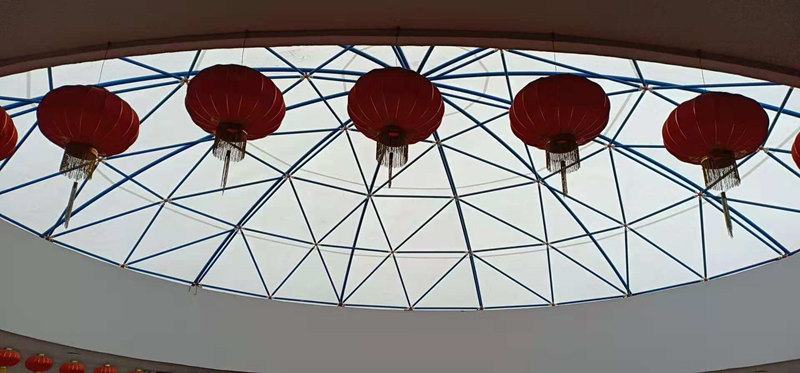

Hakka goup buiding same as big Bucket, and lack of light in the center of museum, so the center dome was used hightransmission lighting, thr building local in Hakka Museum Jakarta, Indonesia.

1-the material PVDF: Light Transmission 35%;

2-Warranty 10 years, the span life more than 15 years;

3-Surface coating PVDF+TiO2

  • Brand:

    Canobbio
  • Item No.:

    CAT-047
  • Payment:

    T/T
  • Market price:

    $36
  • Price:

    $35/m2
  • Product origin:

    Canton China
  • Color:

    White or custimized
  • Shipping port:

    Canton port China
  • Lead Time:

    30-35days
  • Certification:

    SGS/ISO
  • Product Details

Exhibition Center Tensile Membrane Structure Design Consulting Firm

long span outside structure construction


Project Specification


Location

Indonesia

Fabric Material PVC
Completion Date 2014

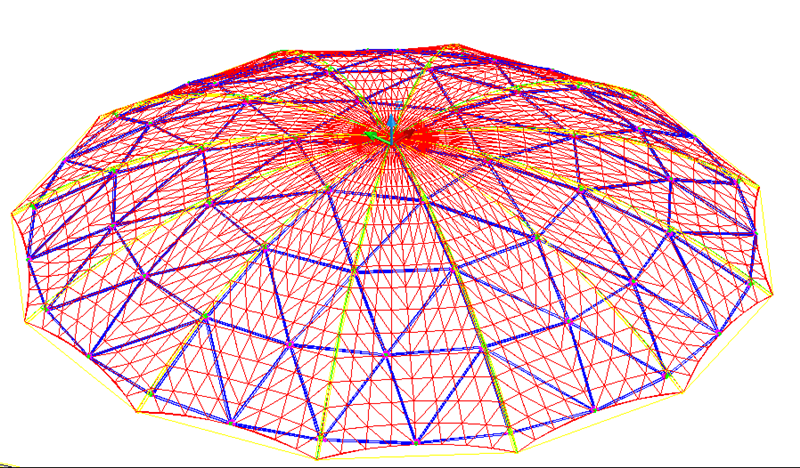

Structure Type  truss net
Warranty 10 Year(Service life over 30 years)

Project Design Concept


exhibition center structure constructionexhibition center tensile fabric roof structureamphitheater structure construction



The Reason Why Choose Tension Structure


1. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs;

2. Short Construction time: Half time is saved compared to the traditional buildings;

3.Various Shape: Changeful supporting structure can make  lots of different shapes of membrane structure with flexible membrane;

4.Security: Membrane Structure can keep the good stability under the action of horizontal load such as earthquake;

5.Self-Cleaning: The rain getinto  water to down on the surface of membrane and clean itself;

6.Fireproof: Fireproof performance of membrane structure can fill the requirements of US ,French,Germany ,Japan and other contries;

7.Large Span:The largest span of Tension membrane structures can exceed to 200m.
