Transparent Textile Structure ETFE Cushions Multipurpose Roof Covering

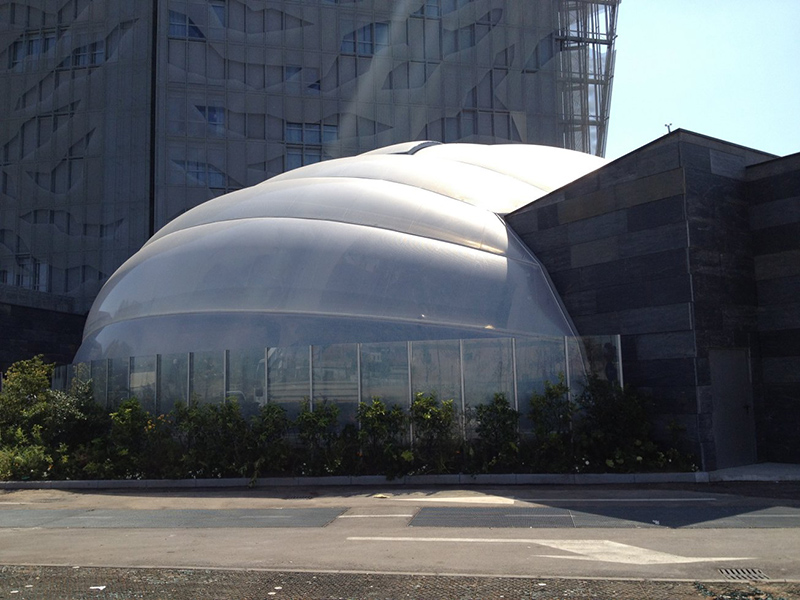

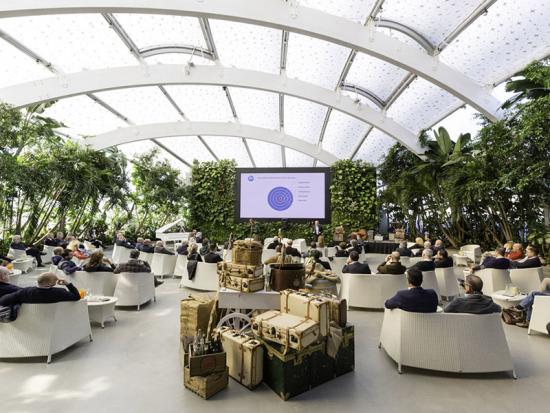

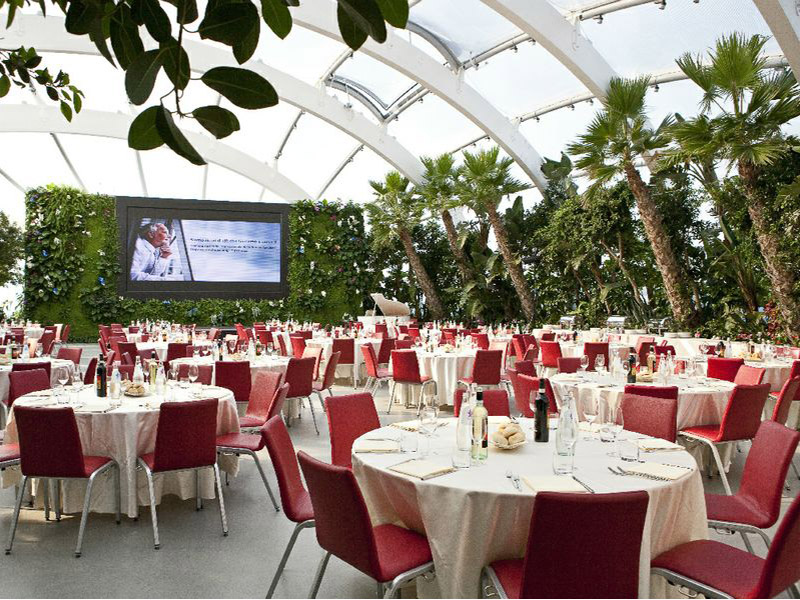

ETFE Cushions Multipurpose Roof Covering was made for winter garden in Crowne Plaza Hotel by Canobbio Italy Team in 2012.

  • Brand:

    Canobbio
  • Item No.:

    CAT-EC005
  • Payment:

    LC or T/T
  • Market price:

    $250
  • Price:

    $200
  • Product origin:

    Germany
  • Color:

    Transparency, White, Blue
  • Shipping port:

    Huangpu port
  • Lead Time:

    10days
  • Product Details

 ETFE Cushions Multipurpose Roof Covering was made for winter garden in Crowne Plaza Hotel by Canobbio Italy Team in 2012.

The total area of the fabric is 650 sq.mt. The ETFE cushions are 4 layer cushions. The thickness of innermost and outermost layers is 250um, while the thickness of middle layers is 100 um. The nominal pression in the cushion system is 300 Pa. But it can be adjustable

according to the local weather. For example, it can be increased to 600 Pa even 800 Pa in case of different levels of snow fall.

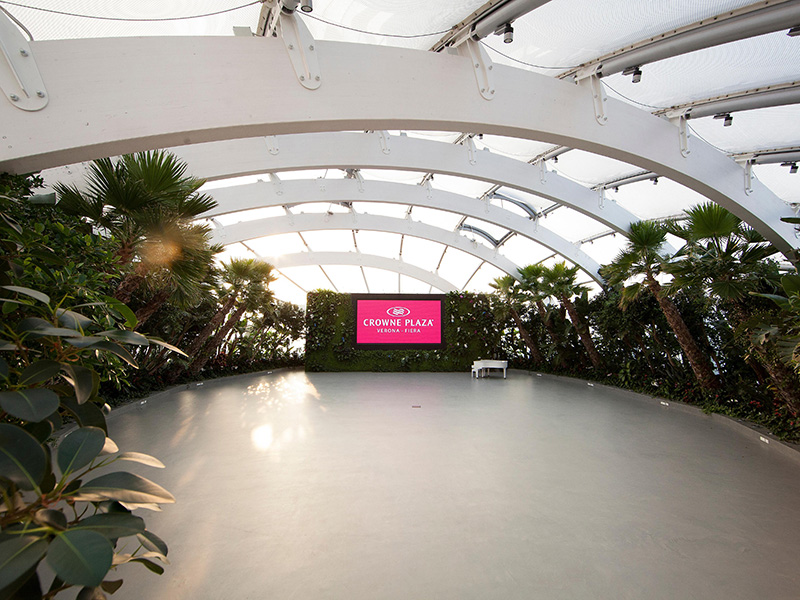

The Frame Structure consists of 7 transversal timber arches and is connected directly to the concrete foundations. And the arches have different shapes to generate the volume of a soft curved structure.


Main Business:


1-Space Structure Concept Design

2-Civil and Commercial Architecture

3-Shop Drawings

4-PVDF Luxury membrane structure, steel membrane structure resistant to super typhoon,

5-PTFE permanent membrane architecture;

6-ETFE air pillow roof and facade membrane

7-Building facade membrane

8-Indoor Class A fireproof membrane Ceiling

9-Light steel structure design and construction integration service

10-Concrete and steel construction


If any inquiry about ETFE cushions Multipurpose Roof Covering, please feel free to mail us:canobbio@canobbio.com.cn.
