Professional Long Span Roof Structure Design Company


our design team can be provided below service:

1-Sport center panning design;

2-3D model made;

3-analysis of structure;

4-perspective drawings made;

5-Engineering made;

6-Shop drawings made;

7-budget of sport center made.

8-manufacture and installation
  • Brand:

    Canobbio
  • Item No.:

    CAT-012
  • Payment:

    T/T
  • Market price:

    $40
  • Price:

    $15/m2
  • Product origin:

    China,Guangdong
  • Color:

    White or custimized
  • Shipping port:

    Guangzhou Port
  • Lead Time:

    30-35days
  • Certification:

    SGS/ISO
  • Product Details

Professional Long Span Roof Structure Design Company

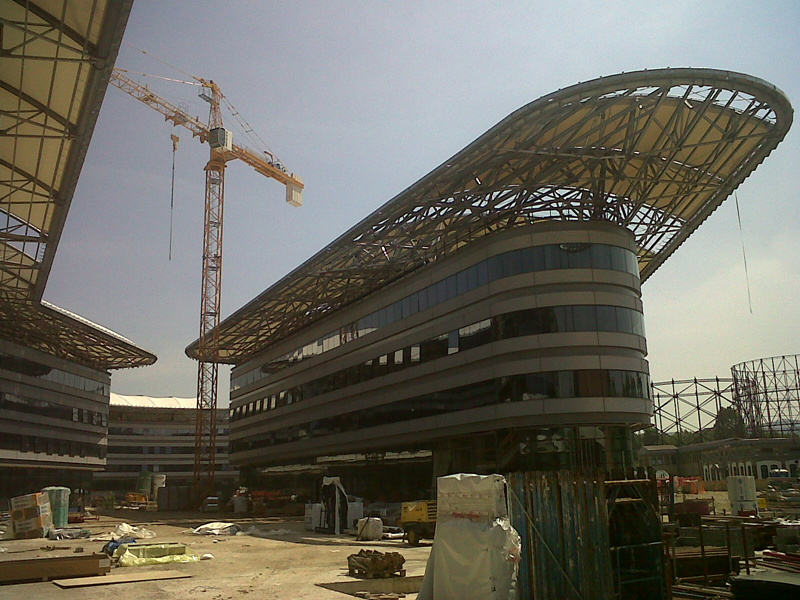

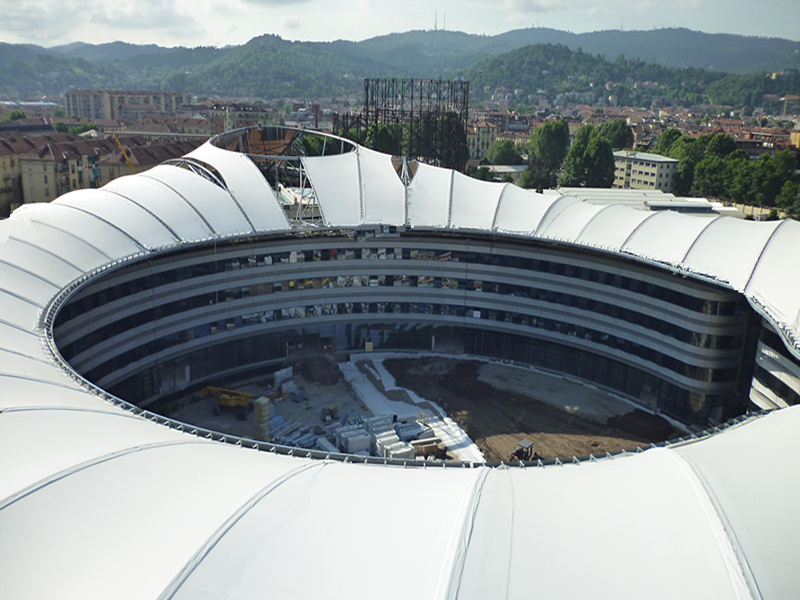

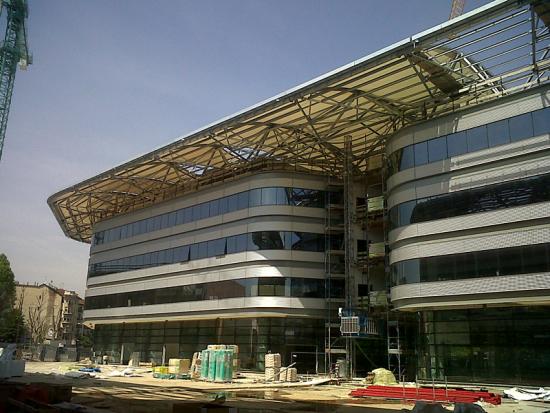

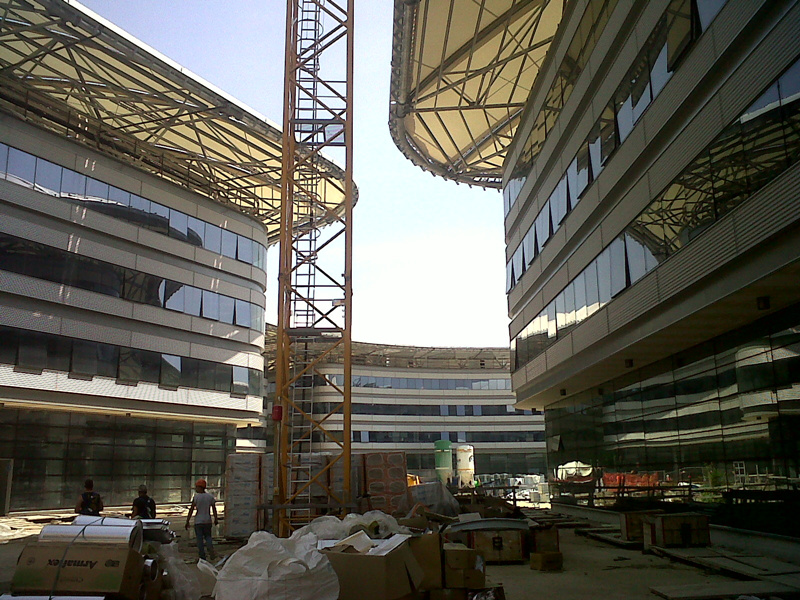

Project Summary:A membrane canopy for the roof. Since the 1990s, the esteemed university of Turin has been gradually modernising its architecture. This has involved moving all the university faculties to a new campus situated on former industrial land.The new campus is to be completed with a building complex designed by the architects to house the faculties of law and political science.


Project Specification


Location

Italy

Project Size 14800
Fabric Material PTFE
Completion Date 2011
Structure Type Light Steel Structure
Warranty 1Year

Project Design Concept


stadium roof designstadium construction company



The Reason Why Choose Tension Structure


1. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs;

2. Short Construction time: Half time is saved compared to the traditional buildings;

3.Various Shape: Changeful supporting structure can make  lots of different shapes of membrane structure with flexible membrane;

4.Security: Membrane Structure can keep the good stability under the action of horizontal load such as earthquake;

5.Self-Cleaning: The rain getinto  water to down on the surface of membrane and clean itself;

6.Fireproof: Fireproof performance of membrane structure can fill the requirements of US ,French,Germany ,Japan and other contries;

7.Large Span:The largest span of Tension membrane structures can exceed to 200m.


Our Service


1.Concept|Design:Creative design solutions.

2.Design-assistance:Provide further design support to architects

3.Engineering:Engineering services provide a special structural examination.

4.Construction|Manufacturing:We are able to deliver on projects because of our skilled fabrication services.

5.Construction Installation:Professional manner and engineer to guide the installation

6.Post-construction services:Include structural reviews, special inspections, routine maintenance, structure modifications, repairs and industrial cleaning of membrane panels.
