Tensile Fabric Structure Design & Construct Details

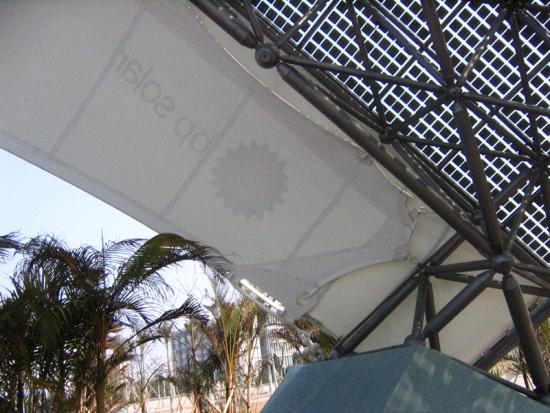

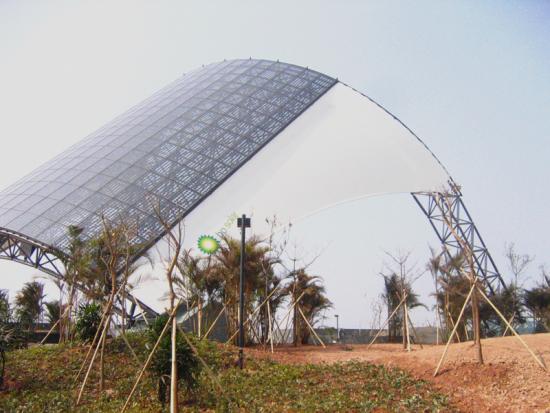

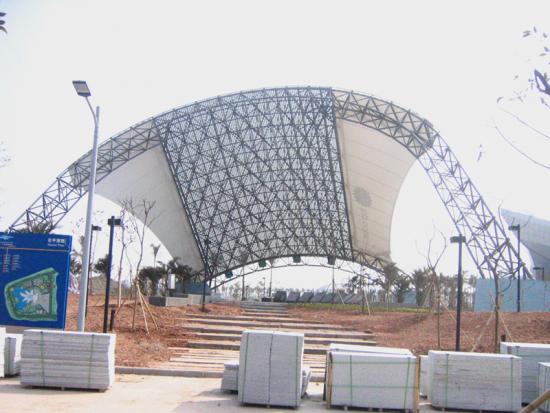

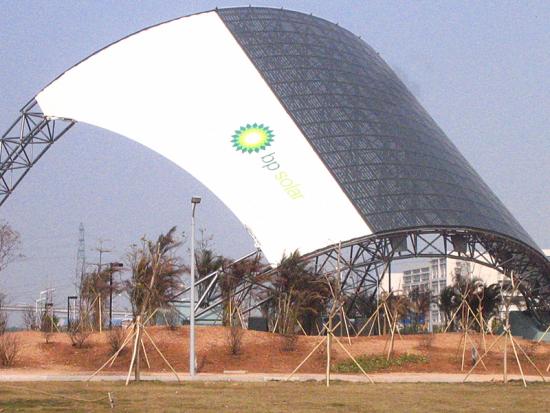

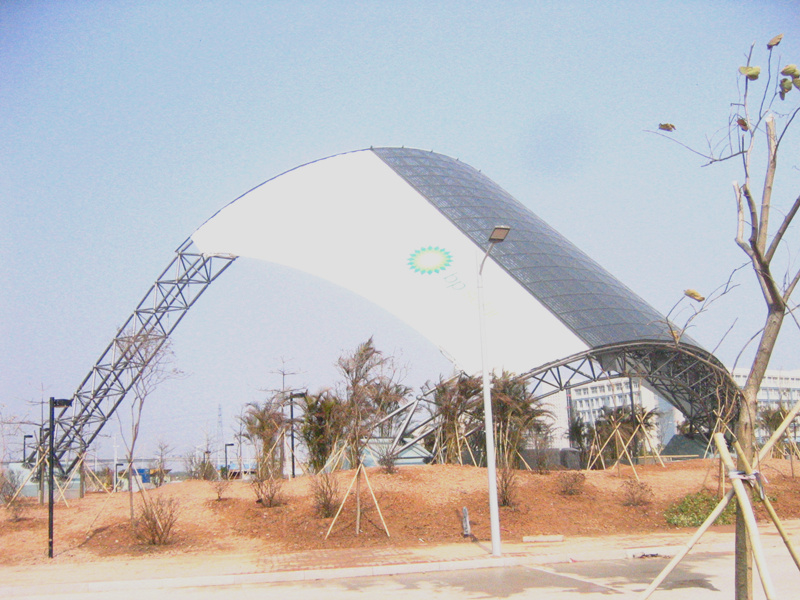

The solar Station Sail of Guangdong Science Center.

  • Brand:

    Canobbio
  • Item No.:

    CAT-025
  • Payment:

    T/T
  • Product origin:

    China,Guangdong
  • Color:

    White or custimized
  • Shipping port:

    Guangzhou Port
  • Lead Time:

    30-35days
  • Certification:

    SGS/ISO
  • Product Details

Tensile Fabric Structure Design & Construct Details

Project Specification

Location
GuangZhou City,Guangdong Province
Project Size 580 Square meters
Fabric Material PVDF
Completion Date 2007
Structure Type Light
Warranty 1Year

Project Summary:


Have you ever imaged? Tensile structure not only can be used in normal building, but also can be used in special filed. This project is a solar Station Sail design for Guangdong Science Center.


Canobbio specialized in designing and building tensile membrane structures, light weight tensile membrane structure and space frame structures  We are very fast to adapt global influences and keep the same in our products and projects. Employees here are experts in their respective departments and work dedicatedly to provide excellent products and services to our clients. The smooth, reflective surfaces of our tensioned membrane structures reduce lighting and cooling costs, reduce solar gain and make the buildings more energy efficient. Usually, the minimum life span of these structures is about 25 years.



Project Design Concept


Fabric Covered Structures


1.Concept|Design:Creative design solutions.

2.Design-assistance:Provide further design support to architects

3.Engineering:Engineering services provide a special structural examination.

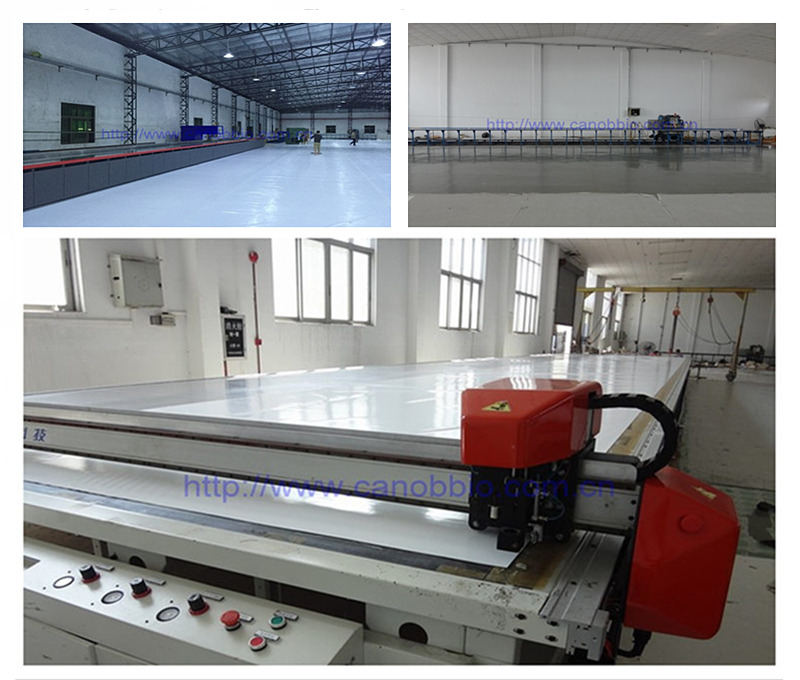

4.Construction|Manufacturing:We are able to deliver on projects because of our skilled fabrication services.

5.Construction Installation:Professional manner and engineer to guide the installation

6.Post-construction services:Include structural reviews, special inspections, routine maintenance, structure modifications, repairs and industrial cleaning of membrane panels.





Why Choose Us


1).Pre-sell conmunication:Respect the customer's ideas and provide reasonable advice;

2).Professional team:We own a professional design and engeering team with over 20 years experiences;

3).Quality:We have real case show our product can withstand typhoon above level 12;

4).Service:7×24 Hour

5).Price:Same price but higher quality.

Contact now,let us find a solution for you!
