Tensile Canopy Systems Design Solutions And Structural Engineering

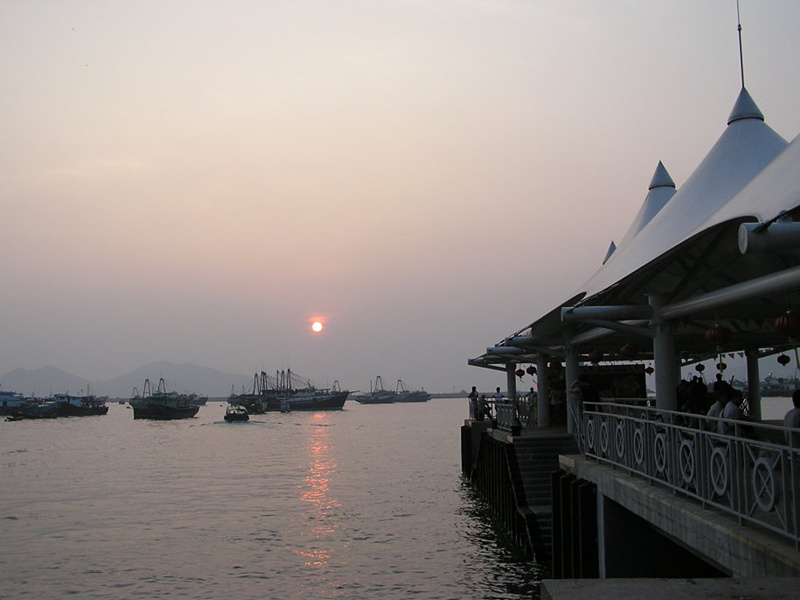

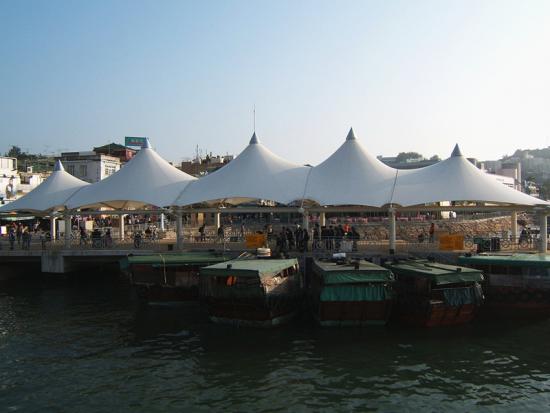

This Tensile Design Solutions was prepared for Hongkong Cheung-chau Port. Mainly used for passengers to rest and transfer.



  • Brand:

    Canobbio
  • Item No.:

    CAT-022
  • Payment:

    T/T
  • Product origin:

    China,Guangdong
  • Color:

    White or custimized
  • Shipping port:

    Guangzhou Port
  • Lead Time:

    30-35days
  • Certification:

    SGS/ISO
  • Product Details

Tensile Canopy Systems Design Solutions And Structural Engineering

Project Specification

Location
Hongkong
Project Size 3000Square meters
Fabric Material PTFE
Completion Date 2011
Structure Type Light Steel Structure
Warranty 1Year



Project Design Concept

Project Summary: As we can see,Tensile structures are one of the most cost-effective solutions to create facades, building envelopes, open air canopies, stadium, athletic facilities, special use facilities, interiors, sculptures, and environmental response structures ect.



Conical Tensile Structure


1.Concept|Design:Creative design solutions.

2.Design-assistance:Provide further design support to architects

3.Engineering:Engineering services provide a special structural examination.

4.Construction|Manufacturing:We are able to deliver on projects because of our skilled fabrication services.

5.Construction Installation:Professional manner and engineer to guide the installation

6.Post-construction services:Include structural reviews, special inspections, routine maintenance, structure modifications, repairs and industrial cleaning of membrane panels.



Why Choose Us


1).Pre-sell conmunication:Respect the customer's ideas and provide reasonable advice;

2).Professional team:We own a professional design and engeering team with over 20 years experiences;

3).Quality:We have real case show our product can withstand typhoon above level 12;

4).Service:7×24 Hour

5).Price:Same price but higher quality.

Contact now,let us find a solution for you!
