PVDF tensile structure design for camping center

This camping center is PVDF tensile design,It's a new type of support frame, they were combined from steel, wooden, bamboo.

  • Item No.:

    CAT-074
  • Payment:

    T/T
  • Product origin:

    China,Guangdong
  • Color:

    White or custimized
  • Shipping port:

    Guangzhou
  • Lead Time:

    30-35days
  • Certification:

  • Product Details

                             PVDF tensile structure design for camping centertensile roof design


Project Specification


Location                         Guizhou province
Project Size
Fabric Material PVDF
Completion Date 2015
Service Life  50years

Project design concept

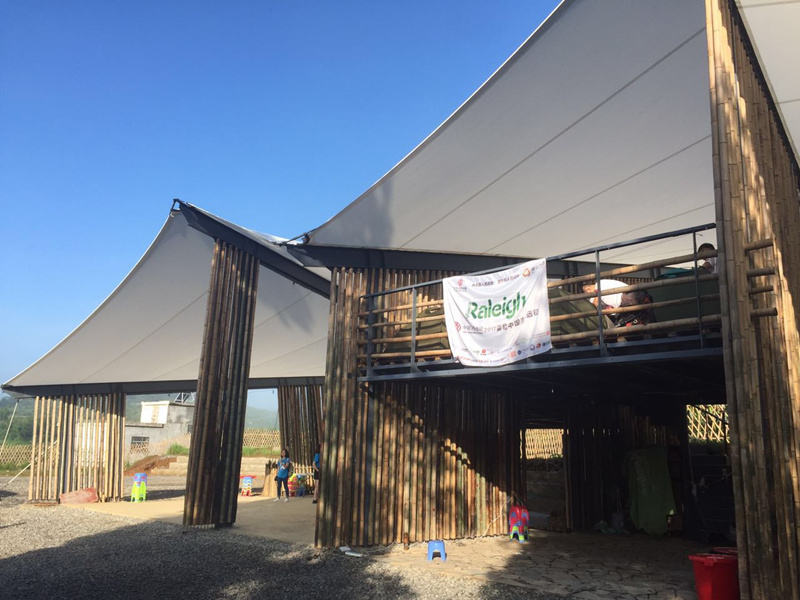

It's a new type of support frame, they were combined from steel, wooden, bamboo.According to local climate characteristics,We decided to take the bamboo as our frame materials. Hight transmission PVC membrane from steel frame and bamboo frame,make the whole structure looks fantastic and comfortable.



Our Services

Concept|Design:Creative design solutions.
Design-assistance:Provide further design support to architects
Engineering:Engineering services provide a special structural examination.
Construction|Manufacturing:We are able to deliver on projects because of our skilled fabrication services.
Construction Installation:Professional manner and engineer to guide the installation
Post-construction services:Include structural reviews, special inspections, routine maintenance, structure modifications, repairs and industrial cleaning of membrane panels.


Why Choose Tension structure?

1. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs;
2. Short Construction time: Half time is saved compared to the traditional buildings;
3.Various Shape: Changeful supporting structure can make  lots of different shapes of membrane structure with flexible membrane;
4.Security: Membrane Structure can keep the good stability under the action of horizontal load such as earthquake;
5.Self-Cleaning: The rain getinto  water to down on the surface of membrane and clean itself;
6.Fireproof: Fireproof performance of membrane structure can fill the requirements of US ,French,Germany ,Japan and other contries;
7.Large Span:The largest span of Tension membrane structures can exceed to 200m.


Why Choose us

1).Pre-sell conmunication:Respect the customer's ideas and provide reasonable advice;

2).Professional team:We own a professional design and engeering team with over 20 years experiences;
3).Quality:We have real case show our product can withstand typhoon above level 12;
4).Service:7×24 Hour
5).Price:Same price but higher quality.
Contact now,let us find a solution for you!
